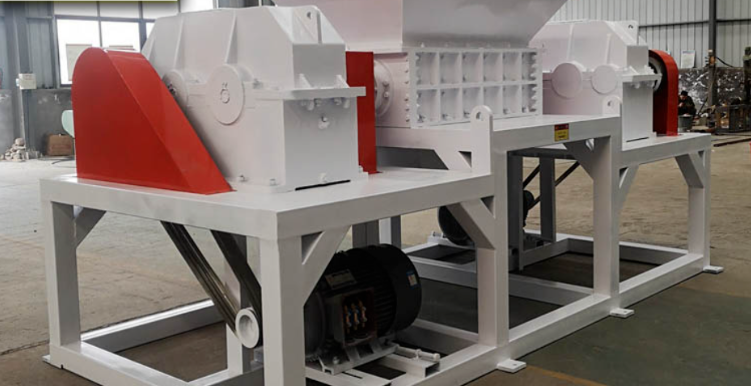

A plastic shredder, also called a plastic crusher or plastic pulverizer, mainly consists of shredding blades, a housing, a support frame, a feeding system, a power system, and an electrical control system. This machine is used to crush high-strength, high-toughness materials, such as various plastic containers, plastic films, plastic shells, plastic ropes, and other plastic products.
【Applications】: Various plastic containers (plastic plates and bowls, plastic bottles, plastic cans, plastic buckets, plastic packaging boxes, etc.), plastic films (plastic bags, plastic packaging films, agricultural mulch films, etc.), plastic pipes (PVC pipes, PE pipes, etc.), plastic shells, plastic ropes, and other plastic products.
Working principle:
The plastic shredder uses two motors to independently drive two main shafts to rotate in opposite directions. The moving blades on the main shafts mesh together to create shearing action, with the blade tips cutting against the cylindrical surface of the blade sleeves. The torque and speed difference of the main shafts create tearing, thus achieving the shredding effect. Because of the meshing of the moving blades, automatic feeding is possible. During low-speed, high-torque production, shaft entanglement or equipment jamming will not occur, thereby improving production efficiency.
Performance characteristics:
1. The hexagonal shaft design makes it easier to disassemble, assemble, and replace tools.
2. Low speed, high torque, low noise, and less dust.
3. All cutting tools are made of 9CrSi steel, with a thickness of up to 10 cm.
4. The machine frame and plates are made of special steel, which prevents the use of substandard materials and can withstand high torque.
6. The structure is simple and reasonable, making operation and maintenance easier.
This is a brief introduction to plastic shredders. If you would like to learn more about plastic shredders or other shredding equipment, please consult our manager. We will answer your questions in detail!
