DC Motor
-
XD32WB-370YSF 2W DC worm gear reduction motor
Power: 2W
Voltage:24V
Speed: 50rpm
Current: 0.03-0.08A
Out shaft size: 6*14mm
Speed regulate: yes
CW/CCW: yes
Running time: cont.24h -
XD-5D120GN-21S-5GN-30K DC gear reduction motor
sort by shaft speed:10 revolutions per minute20 revolutions per minute30 revolutions per minute50 revolutions per minute100 revolutions per minute200 revolutions per minute300 revolutions per minute400 revolutions per minute600 revolutions per minuteVoltage and shaft selection:12V 12 mm shaft24V 12 mm shaft12V 15 mm shaft24V 15 mm shaftFunction selection:ordinarybrake -
XD-37GB3650 Permanent magnet brushless DC motor 24V 200rpm
Power supply mode: DC
Voltage: 24VDC
Operating speed: hig speed motor
Power: 15W
Outgoing shaft size:D6*12mm
Motor body size:D36*50mm
Direction: CCW/CW
Speed regulate: regulatable
Current:1.1A
Motor Speed: 200rpm
Packing size:42*30*37CM (70pcs) -

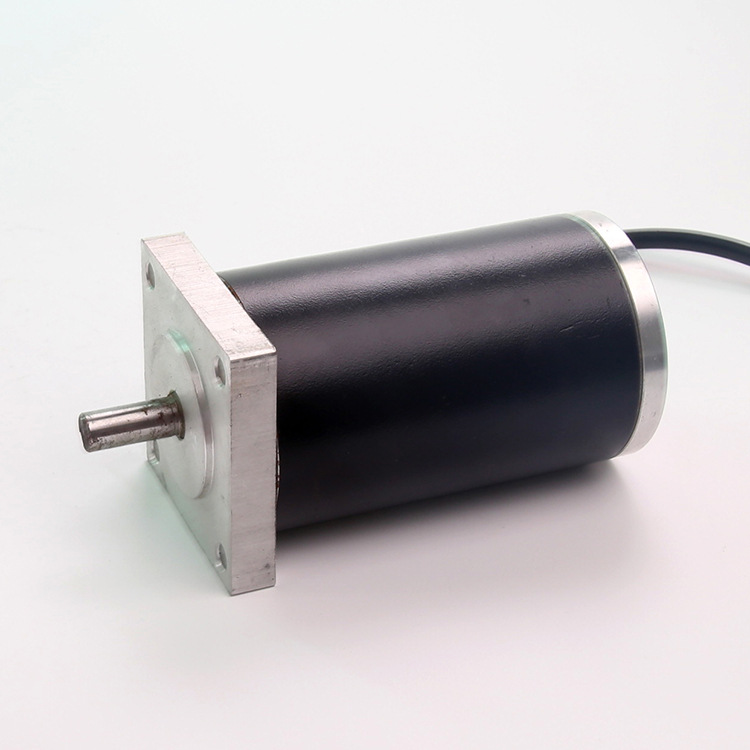

63100/6D100 DC high speed motor 24V 4000rpm
Voltage:24VDC
Power: 150W
Motor off-load Speed: 4000rpm
Motor on-load speed: 3700rpm
Off-load current: 0.55A
On-load current: 2.25A
Current: 13A
Motor out shaft size: as drawing show
Motor size: as drawing show
Turning direction: CW/CCW -

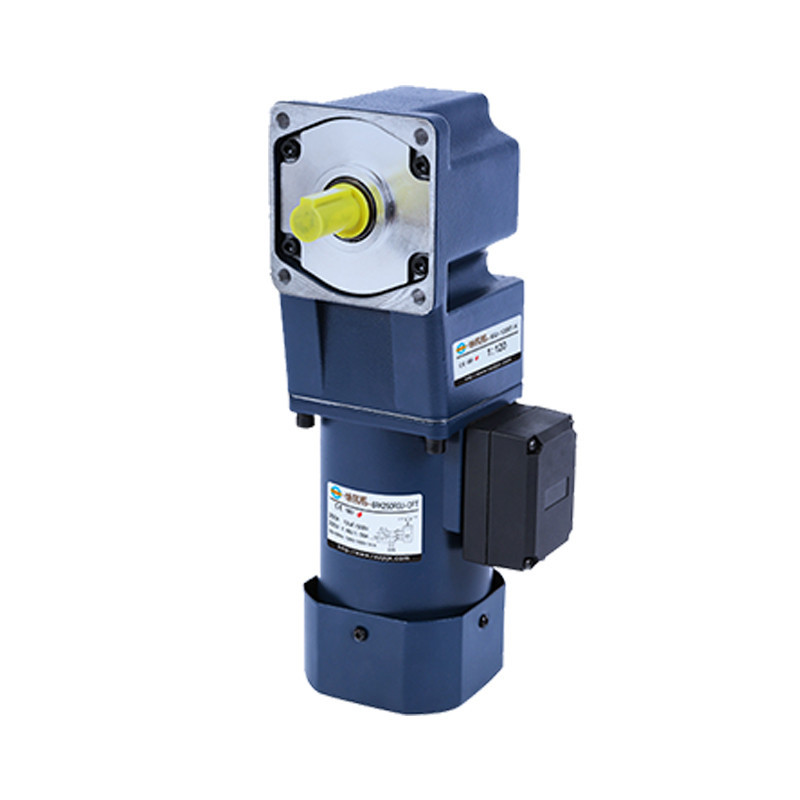

XD-5D90GN-RV40 worm gear motor 24V 18rpm
Rated Power: 90W
Rated voltage: 24V
Off-load speed: 2100rpm
On-load speed: 1800rpm
Off-load curent: 0.6A
On-load current: 5.5A
On-load torque: 3.2 kg.cm
Brush life: 3000h
RV40
Speed ratio: 100K
Output speed: 18rpm
Output torque: 19.6N.M/200kg.cm -
4D40-24GN-21S-4GN-40K DC geared motor
Power: 40W
Voltage: 24V
Speed ratio: 40K
Motor speed: 2100RPM
Current: 3A
Cont.time:24h
Output shaft size: 10* 30mm
Motor size: 80*121mm
Speed direction: CCW/CW
Speed regulatable -
60GA775 DC geared motor
Motor Size: 60*100mm
Speed: 5RPM
Votage:24VDC
Power: 35W
Current: 3A
Outgoing shaft size: 8*19mm -
5D90-12GN-18S 5GN DC Geared Motor
Rated power:90W
Voltage: DC 24V
Motor body speed: 2100r
Geared Output Speed:50rpm
Rated current: 6.5A
Shaft diameter: 12mm -
Xinda 37GB3525/3650 DC brushless geared motor, speed adjustable, forward and reverse rotation, 12V/24V miniature motor
37GB-3525 Brushless Gear Motor
37GB-3525 brushless geared motor + bracket + speed control board
37GB-3525 brushless geared motor + bracket + speed control board + power supply
37GB-3650 brushless geared motor
37GB-3650 brushless geared motor + bracket + speed control board
37GB-3650 brushless geared motor + bracket + speed control board + power supply
Rotational speed selection:5 revolutions per minute10 revolutions per minute20 revolutions per minute30 revolutions per minute50 revolutions per minute100 revolutions per minute200 revolutions per minute300 revolutions per minute500 revolutions per minute600 revolutions per minuteVoltage selection:12V24V -
XD5D200-RV30 200W RV geared DC motor
200W DC motor+gearbox
Model: 5D200GN-RV30
Motor size: 90*250mm
Power mode: DC
Voltage: 24V
Power: 200W
Motor Type: Drive Motor
GEARBOX SIZE – 30
Output shaft speed: 110rpm
Gearbox speed ratio: 20K
Torque:14.6N.m/148.9kgf.cm -
37GB3650 permanent magnet brushless DC motor
Power supply mode: DC
Voltage: 24VDC
Operating speed: hig speed motor
Power: 15W
Outgoing shaft size:D6*12mm
Motor body size:D36*50mm
Direction: CCW/CW
Speed regulate: regulatable
Current:1.1A
Motor Speed: 600rpm
Packing size:42*30*37CM (70pcs) -
Switching power supply 220V to DC24V14.6A350W NES-350-24
Parameter information
brand
MEAN WELL/Mean Well
model
NES-350-24
