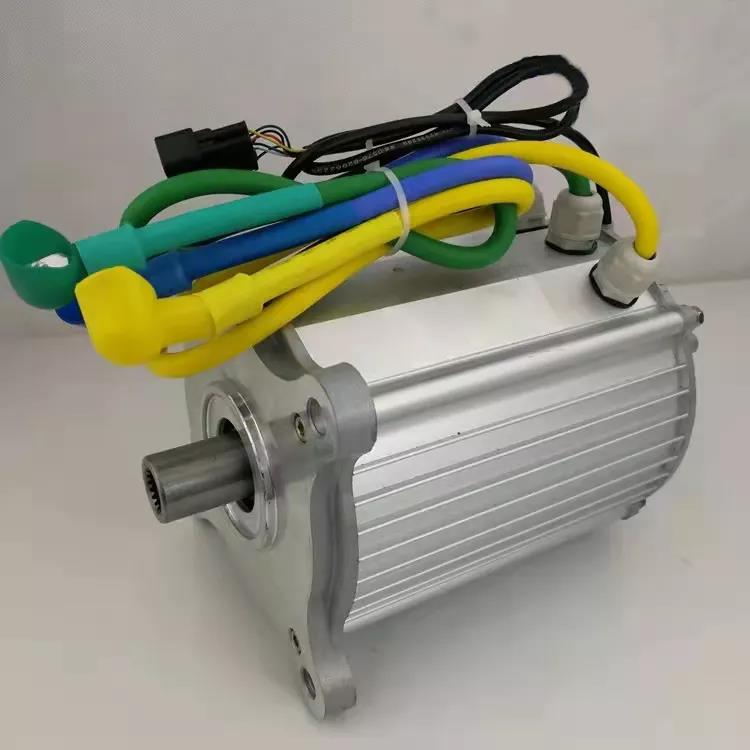

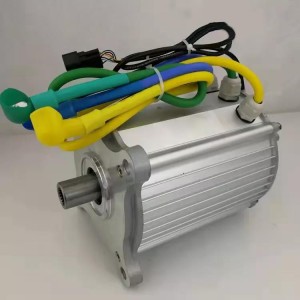

5kW 60V Permanent Magnet Synchronous Motor, Controller, Accelerator

Short Description:

Usage:BOAT, Car
Type:GEAR MOTOR
Torque:92N.m
Construction:Permanent Magnet
Commutation:Brushless
Protect Feature:Waterproof
Speed(RPM):3000rpm
Continuous Current(A):75A
Efficiency:Ie 3
Application:Electric Car Vehicle or Boat
Rated Power:5kW
Max. Power:12kW
Rated Voltage:60V
Rated Speed:3000 r/min
Max. Speed:6000 r/min
Max. Torque:92 N.m
Protection Grade:IP 65
Weight:15kg


Product Detail

Product Tags

Model Number:electric motor conversion kit
Usage:BOAT, Car
Type:GEAR MOTOR
Torque:92N.m
Construction:Permanent Magnet
Commutation:Brushless
Protect Feature:Waterproof
Speed(RPM):3000rpm
Continuous Current(A):75A
Efficiency:Ie 3
Application:Electric Car Vehicle or Boat
Rated Power:5kW
Max. Power:12kW
Rated Voltage:60V
Rated Speed:3000 r/min
Max. Speed:6000 r/min
Max. Torque:92 N.m
Protection Grade:IP 65
Weight:15kg



Product Description

Advantages of PMSM Motor:

1. 5kW PMSM motor & controller is cheaper comparing to 5kW AC ones.



2. No matter in terms of dimension or weight, PMSM motor outdoes AC motor. It is smaller in size and weight less, which will save more room for battery and transportation fee.



3. From the view of performance, according to one of our clients:” PMSM motor system gave me a better feeling of driving. It is more smooth and comfortable, without vibration whatever accelerate or stop.” (He is from Thailand and used AC motor before). We have test data to support that.



4. More inportantly, the efficiency of PMSM motor is higher, up to 98%. It means it has more cruising range (20% farther). Suppose a car with AC motor drive 100km, it can drive 120km with PMSM motor (at the same motor power & battery capacity).

For small power PMSM motor, we have 5kW. It is especially for tricycle or small 4-wheel passenger car. For big power,  36kW is on our product list. It is for bus. Both system is sophisticated enough to put into practice.

Motor Production

Semi-automatic production line: more than 80% automation
60 sets in a single shift; annual production: 15,000; max. annual production: 45,000 sets

Controller Production

Semi-automatic controller production line: more than 80% automation
100 units in a single shift

Quality Management

The quality assurance department will supervise the production process and the test equipment can insure the product quality.

Certifications
CE Certificate
RoHS Certificate
 UL Certificate
CCC Certificate
Packing & Delivery

Normal package is wooden box and it will be fumigated. Sometimes cartons will be chosen if by air. If there are any special requirements, please talk to our sales person.
