electric motor below 20KW
-
8KW60VDC oil pump hydraulic pump forklift motor
Model no.YS175HXD860N10-NJ
Rated power: 8KW
Rated voltage: 60VDC
Rated speed: 2330rpm
Rated freq. 80HZ
Rated current: 156A
Pole no. 4
Working time: S2-15min -
4KW72V oil pump hydraulic pump motor
Rated power 4KW
Rated voltage: 48VAC
Rated current 64.7A
Rated speed 2300rpm
Rated freq. 80.5HZ
Working time: S3-15%
Insulation level: H
Protection grade: IP54Cooling method: natural air cooling
-
5KW72V oil pump motor for electric tractor
AC asynchronous motor
Model no. YS155HXD572N10-RTZN
Rated power 5kW
Rated voltage 50VAC
Rated current 81A
Rated speed 2300RPM
Rated frequency 80Hz
Duty S2-60min
Insulation grade H
Protection grade IP54
Cooling method: natural cooling -
4KW AC oil pump motor
Motor code: JXQD-4-72-HH
Power: 4KW
Rated voltage: 72VDC
Rated speed: 2300rpm
Insulation grade: H
Rated frequency:80Hz
Rated current: 65A
Pole number: 4
-
PMSM 7.5KW72VDC motor for electric truck
PMSM model number: XD155X7.572H2-YJ
Rated power: 7.5KW
Battery voltage: 72VDC
Rated speed: 3000r/min
Rated torque: 23.8Nm
Cooling method: natural cooling
Duty: S9
Maximum speed: 6500r/min
Peak torque: 90N.m
Protection level: IP67
Pole number: 4
Insulation level: H -
-

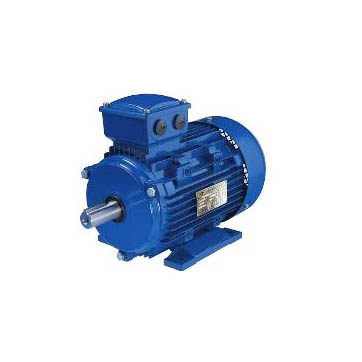

TYB series three-phase permanent magnet synchronous motor
The loss of the excitation system is relieved and the efficiency is improved; the comprehensive power saving rate is 10-50%.
The excitation winding and excitation power supply are relieved, the structure is simple and the operation is reliable.
The rare earth permanent magnet motor is compact in structure, small in size and light in weight; the base is reduced by 1-2 sizes.
The size and shape of the motor are flexible and diverse; non-standard customization is possible.
